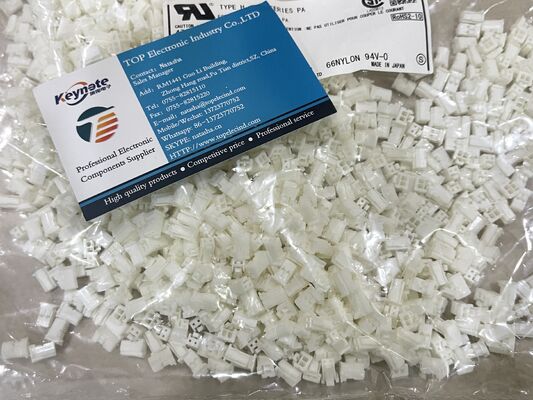

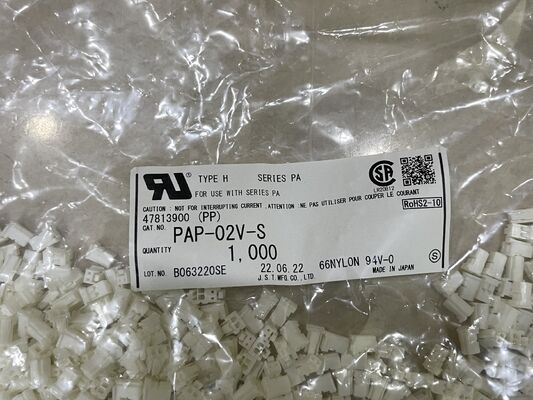

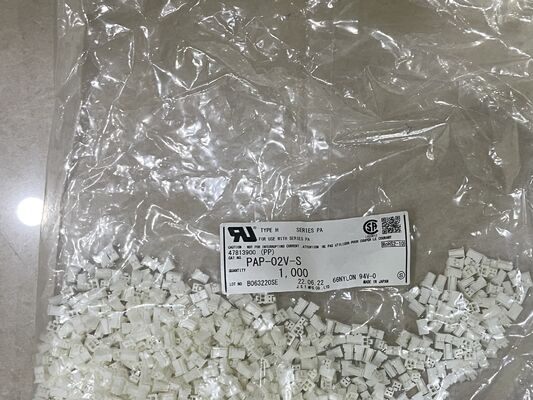

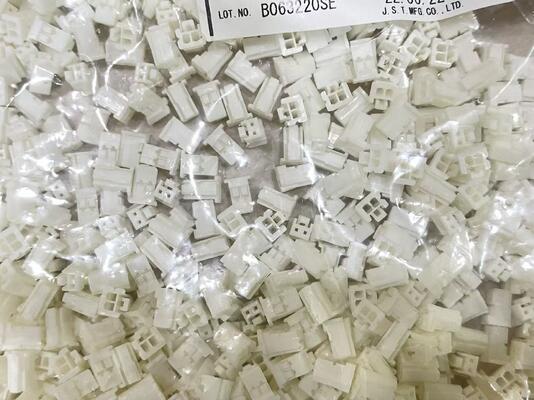

PAP-02V-S 2-pin connector housing secure locking latch compact size 250V rated flame-retardant nylon 66 easy crimp assembly reliable for wire-to-wire

PAP-02V-S 2-pin connector housing secure locking latch compact size 250V rated flame-retardant nylon 66 easy crimp assembly reliable for wire-to-wire

Features

• 2-Pin Compact Housing – Small footprint with 2.0mm pitch, perfect for high-density PCB or inline connections.

• Secure Locking Latch – Positive audible click ensures vibration-resistant mating, prevents accidental unplugging.

• Flame-Retardant Material – UL94 V-0 rated nylon 66 for safety in high-temperature or fault-prone environments.

• 250V AC/DC Voltage Rating – Suitable for low to medium voltage signal and control circuits.

• Wide Operating Temperature – Rated from -25°C to +85°C, covering most indoor and industrial use cases.

• Easy Crimp Assembly – Accepts standard JST crimp contacts (e.g., SPALH-001T-P0.5) for automated or hand tooling.

• Wire-to-Wire & Wire-to-Board Compatible – Can be used with matching PAP header pins on PCBs or another PAP housing for inline splicing.

Applications

• Consumer Electronics – Internal wiring of LED lighting, fans, small home appliances.

• Industrial Control Panels – Signal connections for sensors, switches, and low-power relays.

• Automotive Aftermarket – 12V/24V harness repairs, auxiliary lighting, or interior electronics.

• Battery Packs & Power Systems – Balance leads for Li-ion packs, UPS internal interconnects.

• Medical Devices – Diagnostic equipment, patient monitors (non-implantable, low-risk circuits).

• HVAC & White Goods – Thermostat wiring, humidifier control boards, washing machine sensors.

• Prototyping & DIY Projects – Reliable, detachable connections for Arduino, 3D printers, or custom cable assemblies.

Description

The PAP-02V-S is a 2-position crimp-style connector housing from JST's PAP series, designed for secure wire-to-wire connections in compact electronic devices. Made of UL94 V-0 flame-retardant nylon 66, it features a positive locking mechanism to prevent accidental disconnection. This miniature connector housing accepts SPALH-001T-P0.5 or similar crimp contacts and supports both discrete wire and IDC termination options. Its small pitch (2.0mm) makes it ideal for space-constrained applications requiring reliable signal or low-power distribution.
