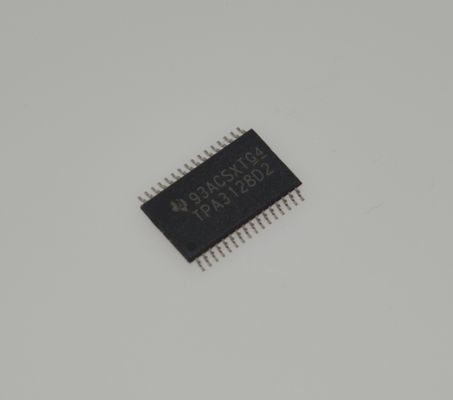

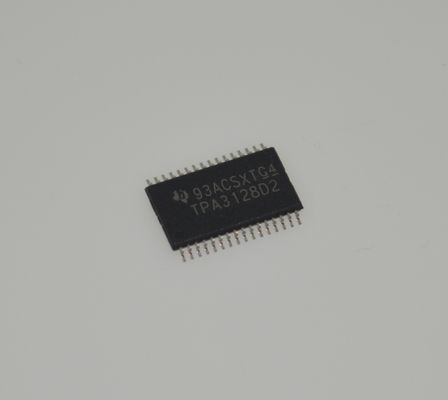

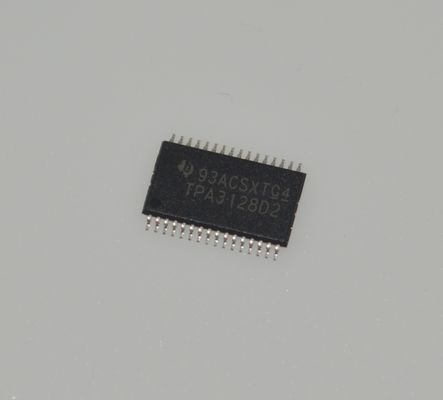

TPA3128D2DAPR 30W Stereo Class-D Amp High Efficiency Low EMI Advanced Protection Wide Voltage Support Compact Design Premium Audio Quality Easy Integration

TPA3128D2DAPR 30W Stereo Class-D Amp High Efficiency Low EMI Advanced Protection Wide Voltage Support Compact Design Premium Audio Quality Easy Integration

Features

• Supports Multiple Output Configurations

  – 2×30WIntoa8-Ω BTL Load at 24 V (TPA3128D2)

  – 2×15WIntoa8-Ω BTL Load at 15 V (TPA3129D2)

• WideVoltage Range: 4.5 V to 26 V

• Efficient Class-D Operation

  – Very Low Idle Current: <23 mA for recommended LC filter configurations

  – Greater than 90% Power Efficiency Combined With Low Idle Loss Greatly Eliminates Need for Heat Sink

  – Adaptive Modulation Schemes based on Output Power

  – Smart Amplifier Drivers to Reduce the Requirement for RC Snubbers

• Multiple Switching Frequencies

  – AM Avoidance

  – Master and Slave Synchronization

  – 300-KHz to 1.2-MHz Switching Frequency

• Feedback Power-Stage Architecture With High PSRR Reduces PSU Requirements

• Programmable Power Limit

• Parallel BTL Mode and Mono-Channel Mode Support

• Supports Both Single and Dual Power Supply Modes

• Integrated Self-Protection Circuits Including Overvoltage, Undervoltage, Overtemperature, DC Detect, and Short Circuit With Error Reporting

• Thermally Enhanced Packages

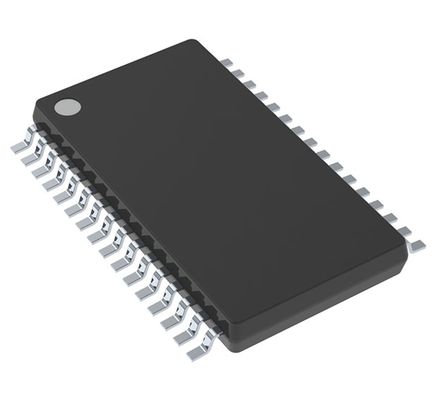

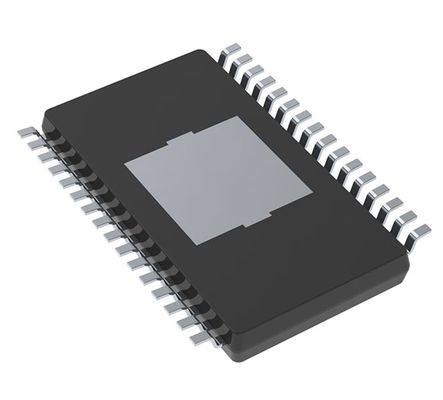

  – DAP(32-Pin HTSSOP Pad Down for TPA3128D2 and TPA3129D2)

Applications

• Bluetooth/Wireless Speakers

• Soundbars

• Mini-Micro Component, Docks

• LCD/LED TVs

• HomeTheaters

Description

The TPA3128D2 and TPA3129D2 have low idle power loss and helps to extend the battery life of Bluetooth/Wireless speakers and other battery powered audio systems. The high efficiency of the TPA3128D2 device allows it to do 2 × 30 W without external heat sink on a dual layer PCB. The high efficiency of the TPA3129D2 device allows it to do 2 × 15 W without external heat sink on a dual layer PCB. This device proposed an efficiency boost Mode, which can dynamically reduced the current ripple of the external LC filter and the idle current .

The TPA31xxD2 advanced oscillator/PLL circuit employs a multiple switching frequency option to avoid AM interferences, which is achieved together with an option of either master or slave option, making it possible to synchronize multiple devices.

The TPA31xxD2 devices are fully protected against faults with short-circuit protection and thermal protection as well as overvoltage, undervoltage, and DC protection. Faults are reported back to the processor to prevent devices from being damaged during overload conditions.

INFORMATION

Drawing

Our advantage :phones, PDA's, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^


Product List
Supply a Series of Electronic Components, full range of semiconductors, active & passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,


The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer & Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal & Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
