REF3030AIDBZR 3V0 Precision Voltage Reference with Ultra-High Accuracy Low Drift Low Quiescent Current Tiny X2SON Package and Excellent Thermal Hysteresis for Extended Battery Life & Stability

REF3030AIDBZR 3V0 Precision Voltage Reference with Ultra-High Accuracy Low Drift Low Quiescent Current Tiny X2SON Package and Excellent Thermal Hysteresis for Extended Battery Life & Stability

Features

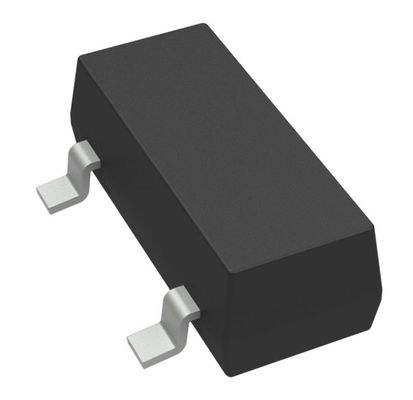

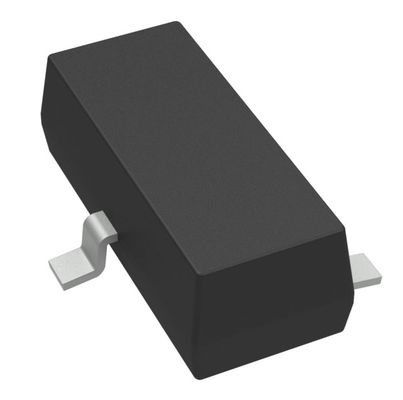

• Small industry standard footprint: SOT23-3

• High accuracy

  – REF30E: ±0.1%

  – REF30: ±0.2%

• Excellent temperature drift performance:

  – REF30E: 20ppm/°C

  – REF30: 75ppm/°C

• REF30E is drop-in replacement of REF30

• Low IQ (typical)

  – REF30E: 25µA

  – REF30: 42µA

• High output current

  – REF30E: ±10mA

  – REF30: 25mA

• Output voltage options

  – REF30E: 1.25V to 5V

  – REF30: 1.25V to 4.096V

• Temperature range: -40ºC to +125ºC

Applications

• Field transmitter & sensor

• Solar energy

• PLC, DCS & PAC

• Energy storage systems

• Medical & healthcare

• AC inverter & VF drives

• Handheld Test Equipment

Description

The REF30 is a precision, low-power, low-dropout voltage, reference family available in a tiny 3 pin SOT-23 package. REF30E is the enhanced performance version of REF30 family which is designed for precision applications. The REF30E offers improved temperature drift and initial accuracy while operating at a lower quiescent current of 25µA.

The low power consumption and the improved precision make the REF30E very attractive for loop powered industrial applications such as pressure and temperature transmitter and battery-powered applications. The REF30/REF30E is specified over the extended industrial temperature range of –40°C to +125°C. The REF30 is easy to use in intrinsically safe and explosion-proof applications because the REF30 does not require a load capacitor to be stable.

INFORMATION

Drawing

Our advantage :phones, PDA's, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^


Product List
Supply a Series of Electronic Components, full range of semiconductors, active & passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,


The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer & Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal & Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)

Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
