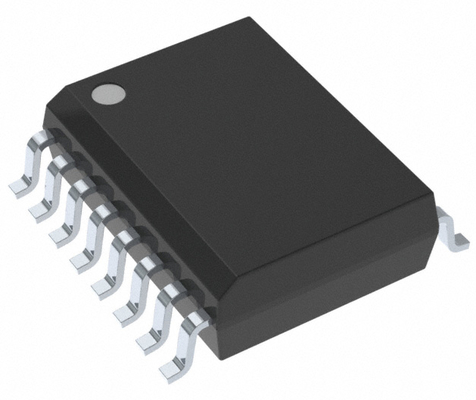

ADS7845E 12-Bit Touch Screen Controller 125kHz Sampling SPI Interface 2.7-5V SSOP-16 -40°C to +85°C

ADS7845E

FEATURES

 5-WIRE TOUCH SCREEN INTERFACE

 RATIOMETRIC CONVERSION

 SINGLE SUPPLY: 2V to 5V

 UP TO 125kHz CONVERSION RATE

 SERIAL INTERFACE

 PROGRAMMABLE 8- OR 12-BIT RESOLUTION

 AUXILIARY ANALOG INPUTS

 FULL POWER-DOWN CONTROL

APPLICATIONS

 PERSONAL DIGITAL ASSISTANTS

 PORTABLE INSTRUMENTS

 POINT-OF-SALES TERMINALS

 PAGERS

 TOUCH-SCREEN MONITORS

DESCRIPTION

The ADS7845 is a 12-bit sampling analog-to-digital converter (ADC) with a synchronous serial interface and low on-resistance switches for driving touch screens. Typical power dissipation is 750µW at a 125kHz throughput rate and a +2.7V supply. The reference voltage (VREF ) can be varied between 1V and +VCC , providing a corresponding input voltage range of 0V to VREF . The device includes a shutdown mode which reduces typical power dissipation to under 0.5µW. The ADS7845 is guaranteed down to 2.7V operation.

Low power, high speed, and on-board switches make the ADS7845 ideal for battery-operated systems such as personal digital assistants with resistive touch screens and other portable equipment. The ADS7845 is avail able in a 16-lead SSOP package and is guaranteed over the –40°C to +85°C temperature range.

INFORMATION

Drawing

Our advantage :

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
